自动化设备

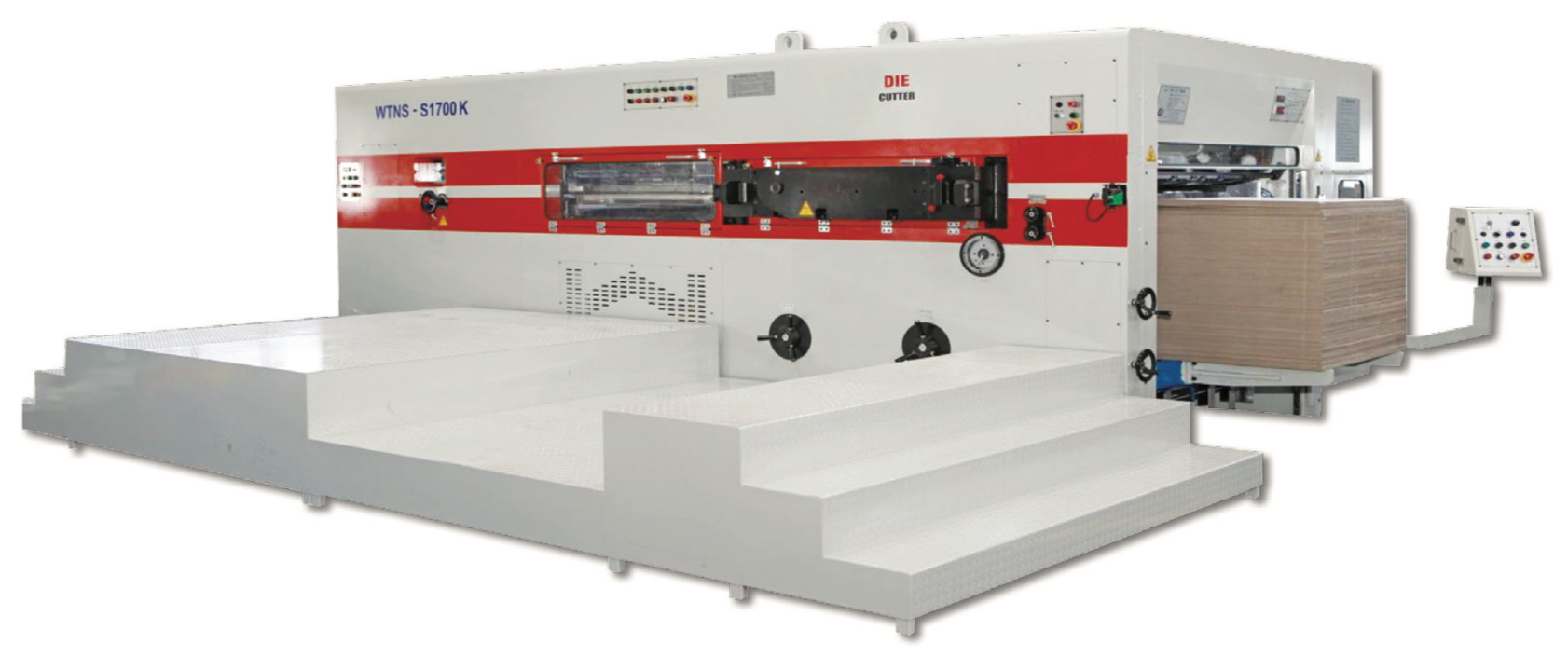

WTNS-S1700K / Semi-Automatic Flatbed Die-Cutter
产品规格
← 左右滑动查看
| Model 구 분 | WTNS- 1300K |
WTNS- S1300K |
WTNS- 1500K |
WTNS- S1500K |
WTNS- 1700K |
WTNS- S1700K |
WTNS- 1900K |
WTNS- S1900K |
WTNS- 2100K |
WTNS- S2100K |
WTNS- 2500K |
WTNS- S2500K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最大纸张尺寸(Max. Sheet Size) | 1,000 × 1,300mm | 1,100 × 1,500mm | 1,200 × 1,700mm | 1,300 × 1,900mm | 1,500 × 2,100mm | 1,700 × 2,500mm | ||||||
| 最小纸张尺寸(Min. Sheet Size) | 500 × 650mm | 550 × 750mm | 600 × 850mm | 650 × 950mm | 750 × 1,050mm | 850 × 1,500mm | ||||||
| 最大模切尺寸(Max. Cutting Size) | 980 × 1,280mm | 1,080 × 1,480mm | 1,180 × 1,680mm | 1,280 × 1,880mm | 1,480 × 2,080mm | 1,680 × 2,480mm | ||||||
| 冲切压力(Operation Pressure) | 300 Tons | 350 Tons | 400 Tons | 450 Tons | 500 Tons | 550 Tons | ||||||
| 最大速度(Max. Speed) | 4,200 S/H | 4,000 S/H | 3,800 S/H | 2,700 S/H | 2,100 S/H | 1,800 S/H | ||||||
| 纸张厚度(Sheet Thickness) | 1 ~ 10mm, Corrugated Board, A, B, AB, E-Flute (15mm special request) | |||||||||||
| 电力(Electrical Power) | 9.2 Kw | 11 Kw | 9.2 Kw | 14 Kw | 13 Kw | 18 Kw | 19 Kw | 24 Kw | 22 Kw | 29 Kw | 35 Kw | 35 Kw |

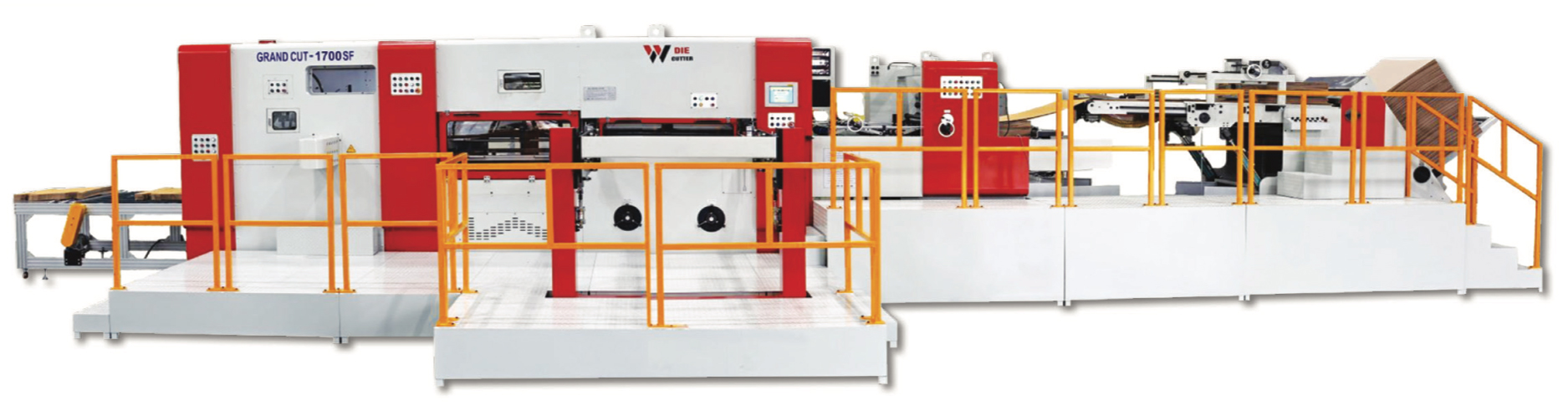

GRAND CUT-1700SF / Fully Automatic Flatbed Die-Cutter
产品规格
← 左右滑动查看
| Model 구 분 | GRAND CUT- 1500 SF |
GRAND CUT- 1700 SF |
GRAND CUT- 1900 SF |
GRAND CUT- 2100 SF |
GRAND CUT- 2500 SF |
|---|---|---|---|---|---|
| 最大纸张尺寸(Max. Sheet Size) | 1,100 × 1,500mm | 1,200 × 1,700mm | 1,300 × 1,900mm | 1,500 × 2,100mm | 1,700 × 2,500mm |
| 最小纸张尺寸(Min. Sheet Size) | 550 × 750mm | 600 × 850mm | 650 × 950mm | 750 × 1,050mm | 850 × 1,250mm |
| 最大模切尺寸(Max. Cutting Size) | 1,100 × 1,500mm | 1,200 × 1,700mm | 1,300 × 1,900mm | 1,500 × 2,100mm | 1,700 × 2,500mm |
| 冲切压力(Operation Pressure) | 350 Tons | 400 Tons | 450 Tons | 500 Tons | 550 Tons |
| 最大速度(Max. Speed) | 6,000 S/H | 5,500 S/H | 4,500 S/H | 4,000 S/H | 2,100 S/H |
| 纸张厚度(Sheet Thickness) | 1 ~ 12mm, Corrugated Board, A, B, AB, E-Flute | ||||
| 电力(Electrical Power) | 53.4 Kw | 55.9 Kw | 58 Kw | 63.3 Kw | 71.4 Kw |
WTNS-1060S / Fully Automatic Flatbed Die-Cutter
产品规格
← 左右滑动查看
| Model 구 분 | GRAND CUT- 1500 SF |
GRAND CUT- 1700 SF |
GRAND CUT- 1900 SF |
GRAND CUT- 2100 SF |
GRAND CUT- 2500 SF |
|---|---|---|---|---|---|
| 最大纸张尺寸(Max. Sheet Size) | 1,100 × 1,500mm | 1,200 × 1,700mm | 1,300 × 1,900mm | 1,500 × 2,100mm | 1,700 × 2,500mm |
| 最小纸张尺寸(Min. Sheet Size) | 550 × 750mm | 600 × 850mm | 650 × 950mm | 750 × 1,050mm | 850 × 1,250mm |
| 最大模切尺寸(Max. Cutting Size) | 1,100 × 1,500mm | 1,200 × 1,700mm | 1,300 × 1,900mm | 1,500 × 2,100mm | 1,700 × 2,500mm |
| 冲切压力(Operation Pressure) | 350 Tons | 400 Tons | 450 Tons | 500 Tons | 550 Tons |
| 最大速度(Max. Speed) | 6,000 S/H | 5,500 S/H | 4,500 S/H | 4,000 S/H | 2,100 S/H |
| 纸张厚度(Sheet Thickness) | 1 ~ 12mm, Corrugated Board, A, B, AB, E-Flute | ||||
| 电力(Electrical Power) | 53.4 Kw | 55.9 Kw | 58 Kw | 63.3 Kw | 71.4 Kw |
MEGACUT
产品规格
← 左右滑动查看
| Model 구 분 | GRAND CUT- 1500 SF |
GRAND CUT- 1700 SF |
GRAND CUT- 1900 SF |
GRAND CUT- 2100 SF |
GRAND CUT- 2500 SF |
|---|---|---|---|---|---|
| 最大纸张尺寸(Max. Sheet Size) | 1,100 × 1,500mm | 1,200 × 1,700mm | 1,300 × 1,900mm | 1,500 × 2,100mm | 1,700 × 2,500mm |
| 最小纸张尺寸(Min. Sheet Size) | 550 × 750mm | 600 × 850mm | 650 × 950mm | 750 × 1,050mm | 850 × 1,250mm |
| 最大模切尺寸(Max. Cutting Size) | 1,100 × 1,500mm | 1,200 × 1,700mm | 1,300 × 1,900mm | 1,500 × 2,100mm | 1,700 × 2,500mm |
| 冲切压力(Operation Pressure) | 350 Tons | 400 Tons | 450 Tons | 500 Tons | 550 Tons |
| 最大速度(Max. Speed) | 6,000 S/H | 5,500 S/H | 4,500 S/H | 4,000 S/H | 2,100 S/H |
| 纸张厚度(Sheet Thickness) | 1 ~ 12mm, Corrugated Board, A, B, AB, E-Flute | ||||
| 电力(Electrical Power) | 53.4 Kw | 55.9 Kw | 58 Kw | 63.3 Kw | 71.4 Kw |
